CodecPage
 video encoding&cleaning


Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

Original filtered

Now if we want to save the filtered result for subsequent 2-pass MPEG encoding, which codec is best ?













Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

PIC MJPEG with quality custom 5-5 (19..20), 2 fields, 4:2:2














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

Huffyuv with "convert to YUY2" setting; this is bad: Use RGB instead !














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

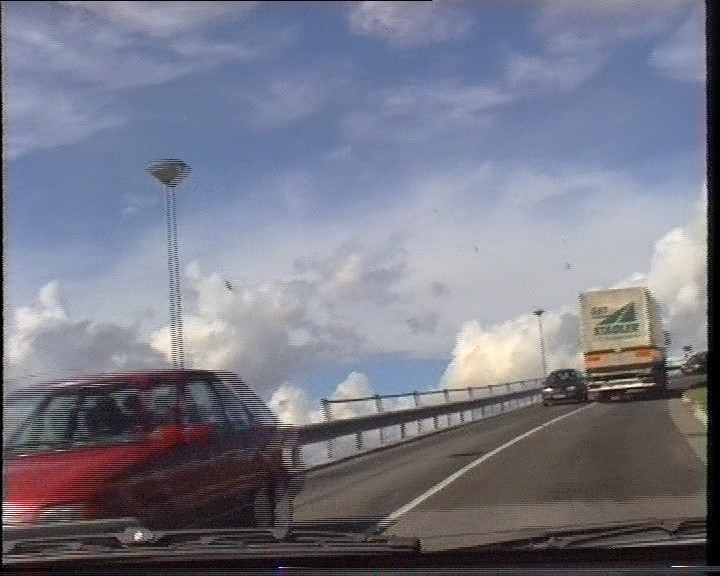

Huffyuv RGB














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

Main Concept DV codec














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

Settings for PICvideo; still much better quality settings possible
(this here produces a file size like DV; 1,1 would produce a file size like Huffyuv with YUY2)















Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

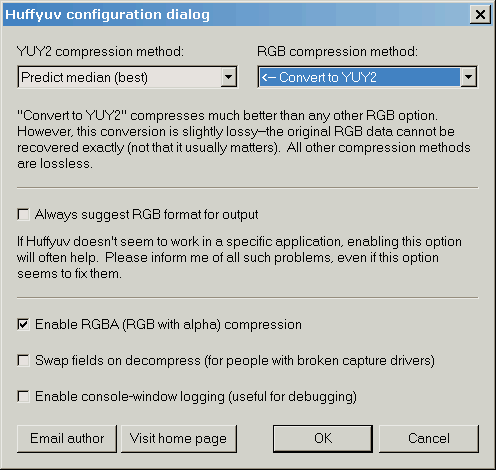

Huffyuv YUY2 settings; not recommended ! (bad, and compression only 3:1)














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

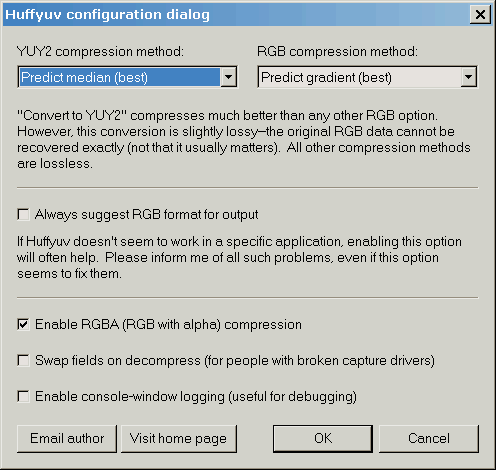

Huffyuv recommended setting; lossless but compression only 2:1














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

DV codec settings. Do not use "fastest", it would result in bad quality !














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

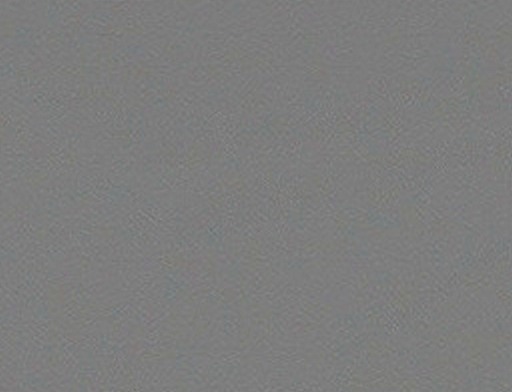

Difference between original and PIC compression, (2x enlarged and 2x contrast)
(right picture: the according image section for orientation)














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

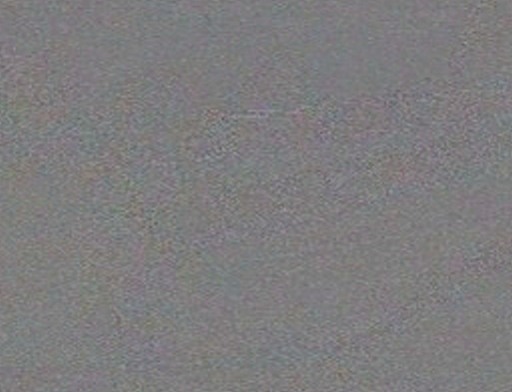

Difference between original and Huffyuv YUY2 compression, (2x enlarged and 2x contrast)
(right picture: the according image section for orientation)














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

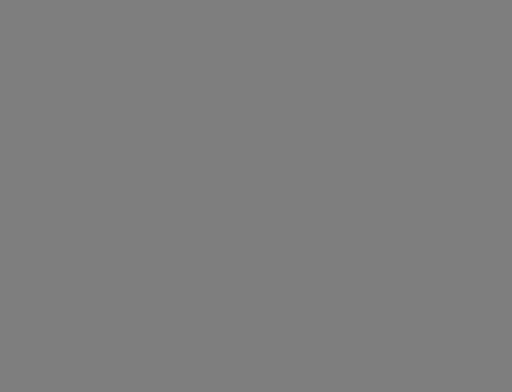

Difference between original and HuffyuvRGB compression, (2x enlarged and 2x contrast)
(right picture: the according image section for orientation)














Filtered original   PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Codec settings :  PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)
Difference :        PICmjpeg@19-20   HuffyuvYUY2   HuffyuvRGB   DV(MainConcept)

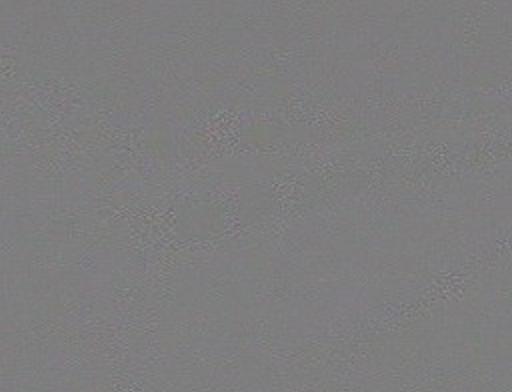

Difference between original and DV compression, (2x enlarged and 2x contrast)
(right picture: the according image section for orientation)
